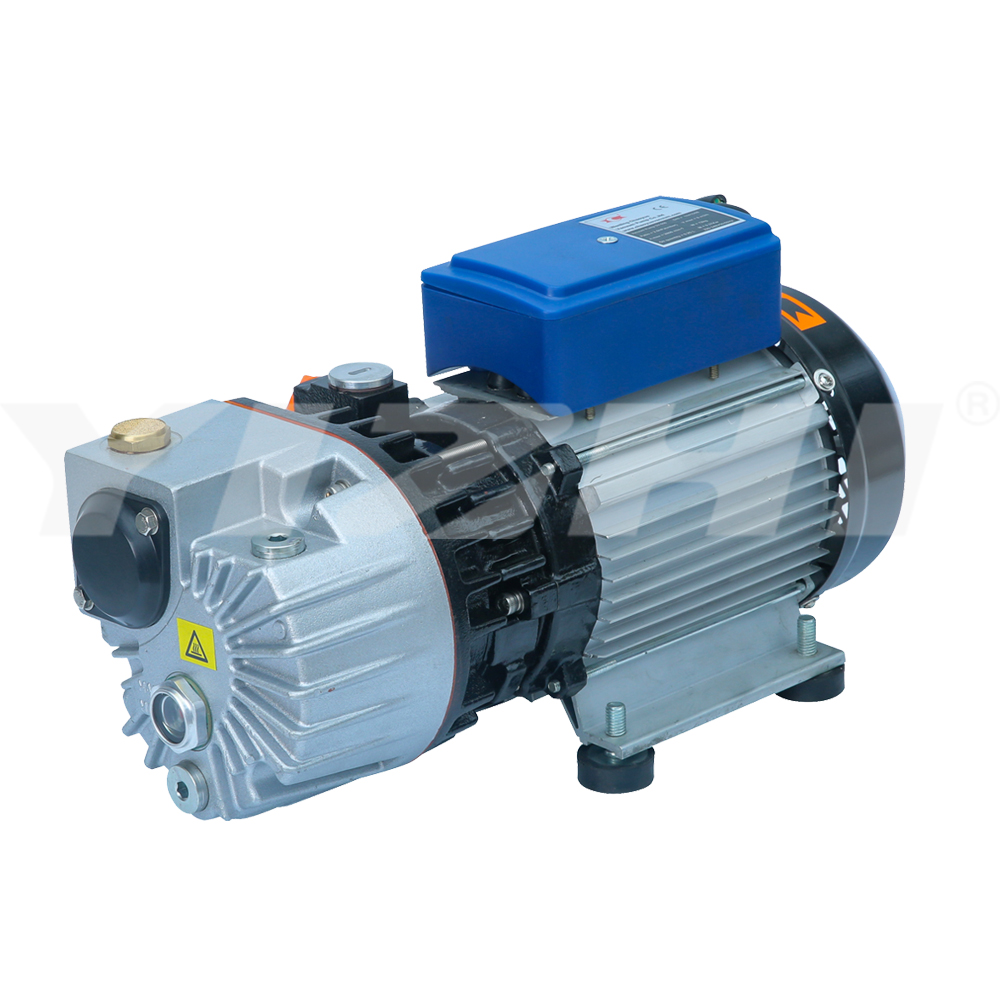

OSV-008
    Publish time 2025-08-21 09:18
OSV-008
Technical Data                         OSV-008
Nominal pumping speed8.0 / 9.6 m³/h (50 / 60 Hz)
Ultimate pressure200 Pa (50 / 60 Hz)
Nominal motor rating0.37 / 0.45 kW (50 / 60 Hz)
Nominal motor speed2800/3300 RPM(50 / 60 Hz)
Noise level (ISO 2151)60 / 64 dB(A) (50 / 60 Hz)
Oil capacity0.25 l
Weight approx.11 kg (50 / 60 Hz)
Dimension330*165*152
Gas inlet / outletG 3/8"
