HOME >> Oil-Lubricated Rotary Vane Vacuum Pump >> OSV-020

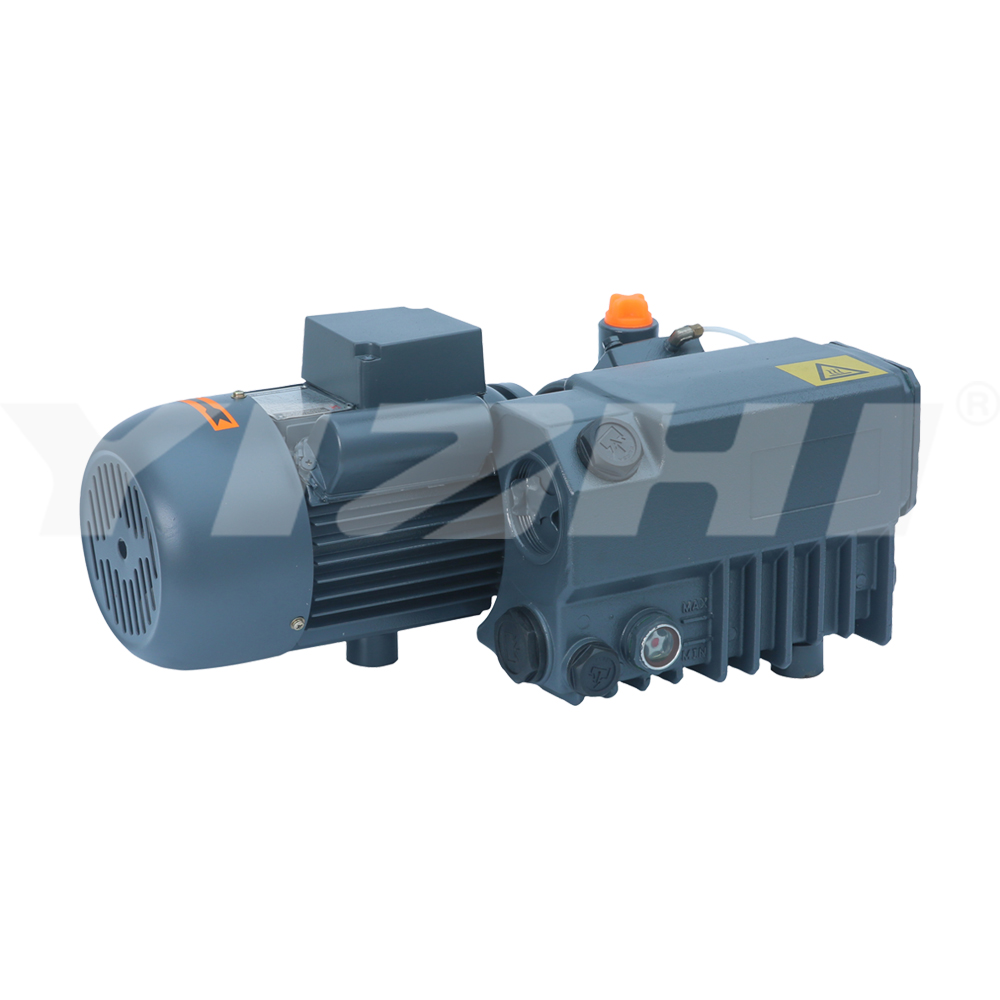

OSV-020
    Publish time 2025-08-21 09:19
OSV-020



Technical Data                         OSV-020
Nominal pumping speed20 / 24 m³/h (50 / 60 Hz)
Ultimate pressure200 Pa (50 / 60 Hz)
Nominal motor rating0.75 / 0.83 kW (50 / 60 Hz)
Nominal motor speed2800/3300 RPM(50 / 60 Hz)
Noise level (ISO 2151)66 / 72 dB(A) (50 / 60 Hz)
Oil capacity0.4 l
Weight approx.25 kg (50 / 60 Hz)
Dimension405*253*210
Gas inlet / outletG 1/2" or G3/4"
