HOME >> Oil-Lubricated Rotary Vane Vacuum Pump >> OSV-250

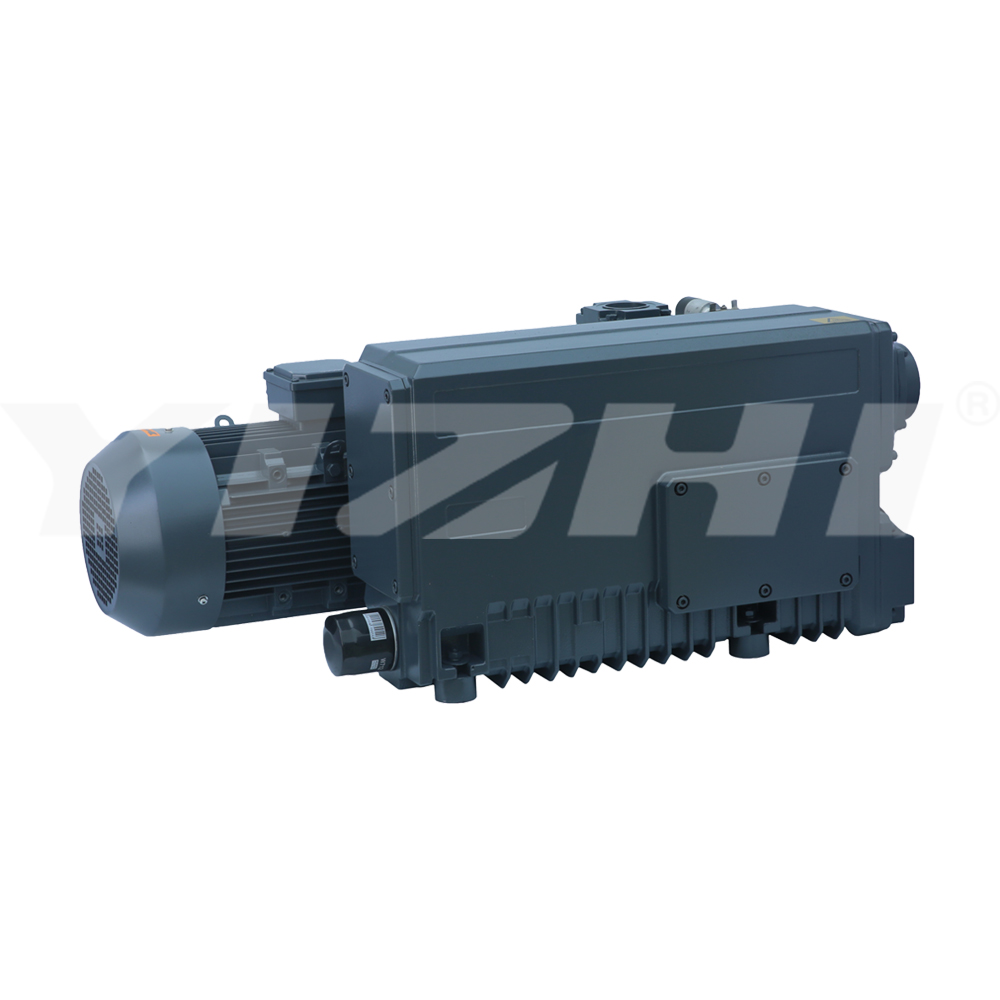

OSV-250
    Publish time 2025-08-21 09:25
OSV-250


Technical Data                  OSV-250
Nominal pumping speed250 / 300 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating5.5 / 6.3 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)72 / 79 dB(A) (50 / 60 Hz)
Oil capacity7.0 l
Weight approx.230 kg (50 / 60 Hz)
Dimension1000*550*410
Gas inlet / outletG 2"
