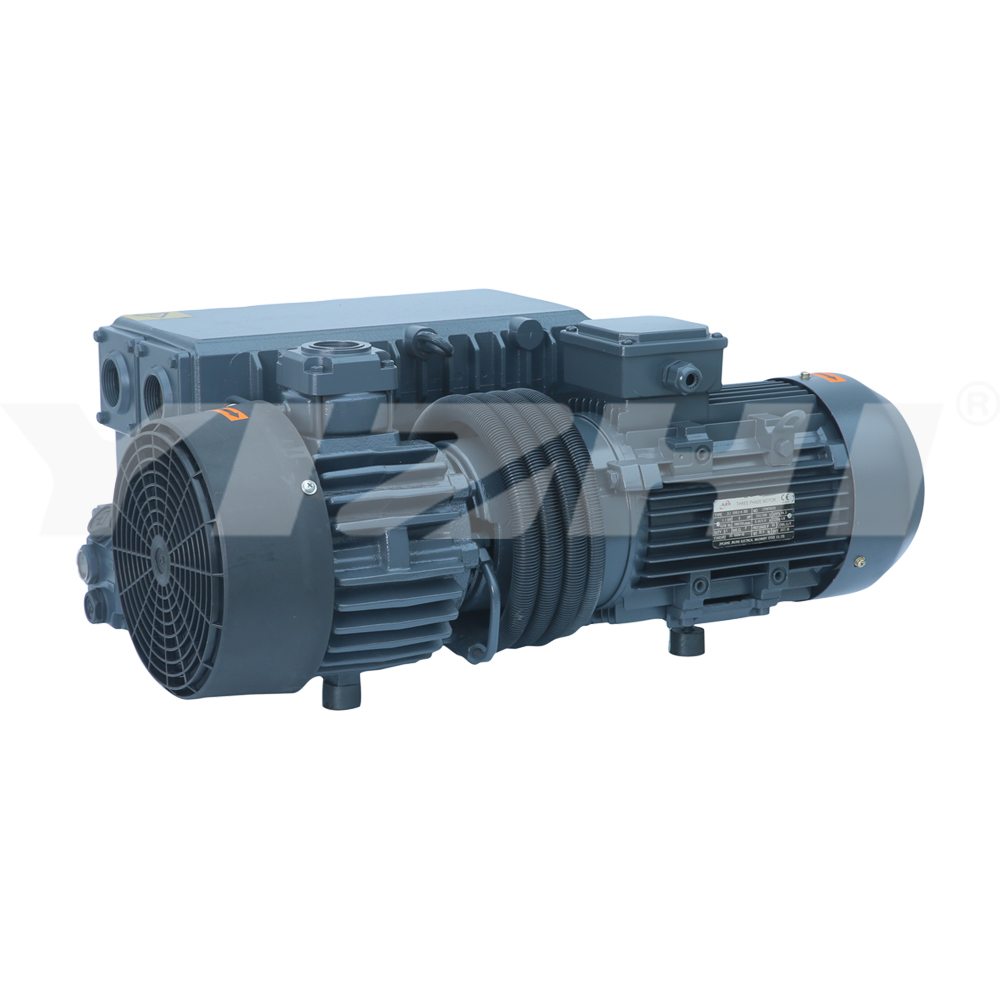

OSV-063
    Publish time 2025-08-21 09:23
OSV-063


Technical Data                         OSV-063
Nominal pumping speed63 / 76 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating2.2 / 2.55 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)65 / 68 dB(A) (50 / 60 Hz)
Oil capacity2.0 l
Weight approx.75 kg (50 / 60 Hz)
Dimension695*420*295
Gas inlet / outletG 1 1/4"
