HOME >> Oil-Lubricated Rotary Vane Vacuum Pump >> OSV-100

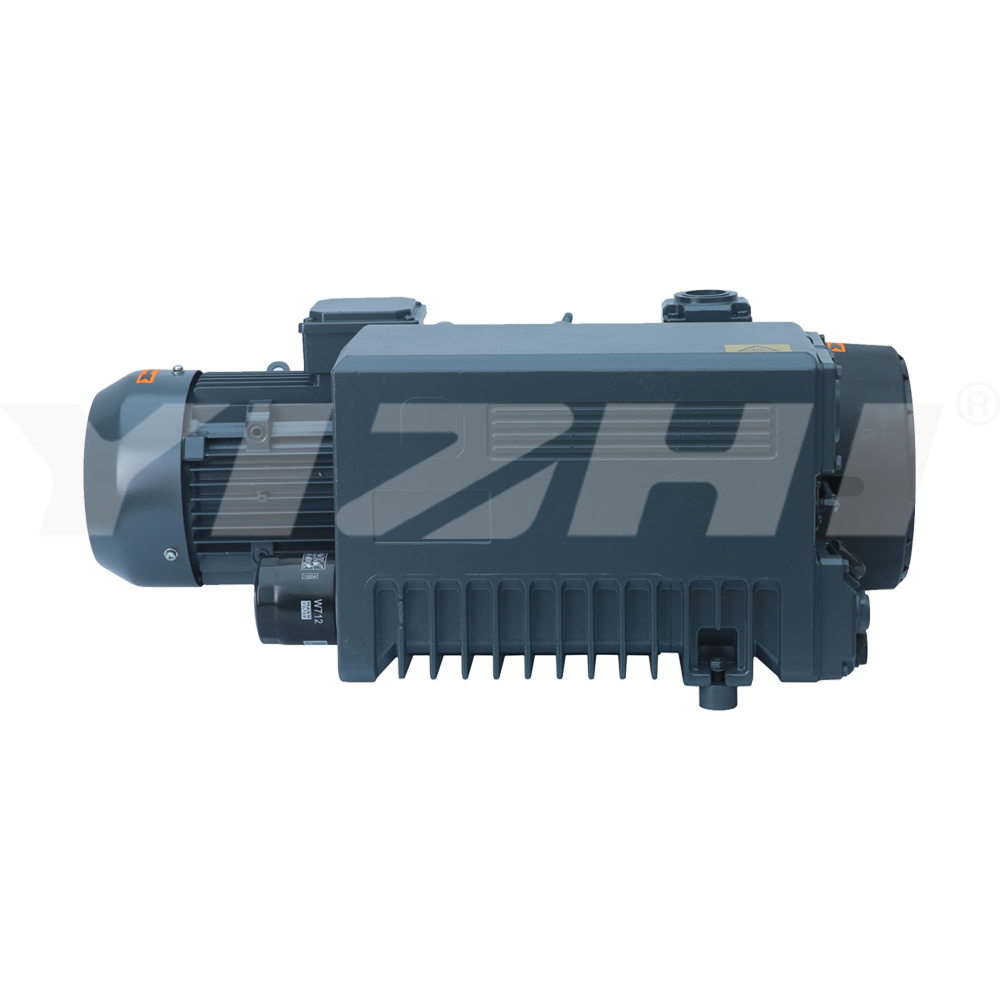

OSV-100
    Publish time 2025-08-21 09:23
OSV-100



Technical Data

                         OSV-100

Nominal pumping speed100 / 120 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating3.0 / 3.45 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)65 / 68 dB(A) (50 / 60 Hz)
Oil capacity2.0 l
Weight approx.77 kg (50 / 60 Hz)
Dimension735*420*295
Gas inlet / outletG 1 1/4"
